Support of new Vendotek validators in RetailBUD

In the RetailBUD service, the support of new models of validators Vendotek developed by “Terminal Technologies” company. Two models Validator A and Lite Validator is used to accept cashless payments on transport as a self-service device.

Vendotek is a compact integrated solution for cashless payment on public transport. POS-terminal provides acceptance of all types of cards: contactless EMV bank cards and MIFARE cards. Payment is also possible for smartphones with NFC.

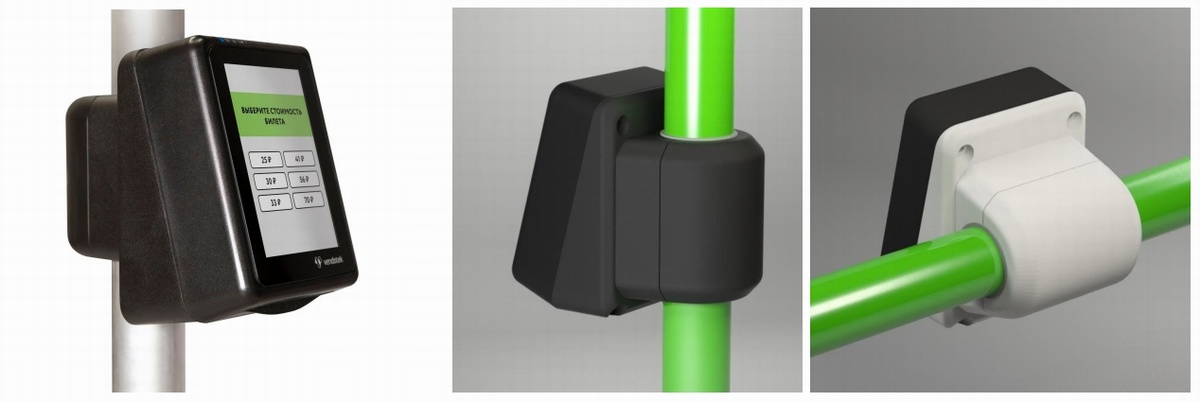

Thanks to its compact size and convenient fixture, the device is securely mounted on a horizontal or vertical handrail and can be easily removed from its fixture without dismantling of handrail. The device can be optionally equipped with a reader of a two-dimensional QR code.

The device is made in two versions:

  • Lead Validator A equipped with 4G modem and Android OS 8
  • Validator Lite, connect to Lead Validator A.

The power supply of the validator is carried out directly from a vehicle’s on-board network, a voltage range between 12–36 V, protection from power network surges. Current consumption at mains voltage from 24 V - up to 400 mA.

For schemes with several tariffs, the device can optionally have a touch screen.

Validator А

  • Android OS
  • ARM Cortex-A7 microprocessor cores (quad-core) up to 1.1GHz
  • Flash Memory 8​Gb​ for storing programs and data;
  • RAM 1Gb;
  • battery-powered safe storage memory 4Kb;
  • Supply voltage + 12 … ​ 36 V;
  • Colorful TFT ​display with resolution 320×​ 480​ , 3.5 inches.​
  • 4G Modem
  • WiFi
  • Bluetooth;
  • Ethernet 10BaseT - optional
  • RS232 for maintenance;
  • RS232 for GPS receiver
  • RS422 (RS485) for communication with validator Lite - optional
  • 2 x SAM ​
  • MIR;
  • PayPass;
  • PayWave;
  • China Union Pay;
  • Mifare Ultralight/Ultralight C;
  • Mifare Plus​ ;
  • Mifare Classic

Validator Lite

  • OS - RTOS
  • Programming language - С, С++
  • CPU: ​ ARM Cortex M3​ ;
  • Flash Memory 1Mb​ for storing programs and data;
  • RAM 384Kb​;
  • Battery-powered safe storage memory 4Kb;
  • Supply voltage + 12 … ​ 36​ V;
  • Colorful TFT ​display with resolution 320×​ 240​ , 2.4 inches;
  • Colorful TFT ​display with resolution 320×​ 480​ , 3.5 inches - optional​.
  • RS422 (RS485) - to communicate with the lead validator
  • Ethernet ​ 10Base T​ - ​ optional​ ;
  • RS232 for maintenance;
  • 2 x SAM.
  • MIR;
  • PayPass;
  • PayWave;
  • China Union Pay;
  • Mifare Ultralight/Ultralight C;
  • Mifare Plus​ ;
  • Mifare Classic

Usage variants

Vehicle with one door:

  • One Validator A near a driver or front door.

A vehicle with several doors:

  • Validator A near a driver or front door;
  • Lite validators near the rest of doors connected to Lead Validator A via Ethernet or RS485

Accept all types of cards using Validators Vendotek and RetailBUD
